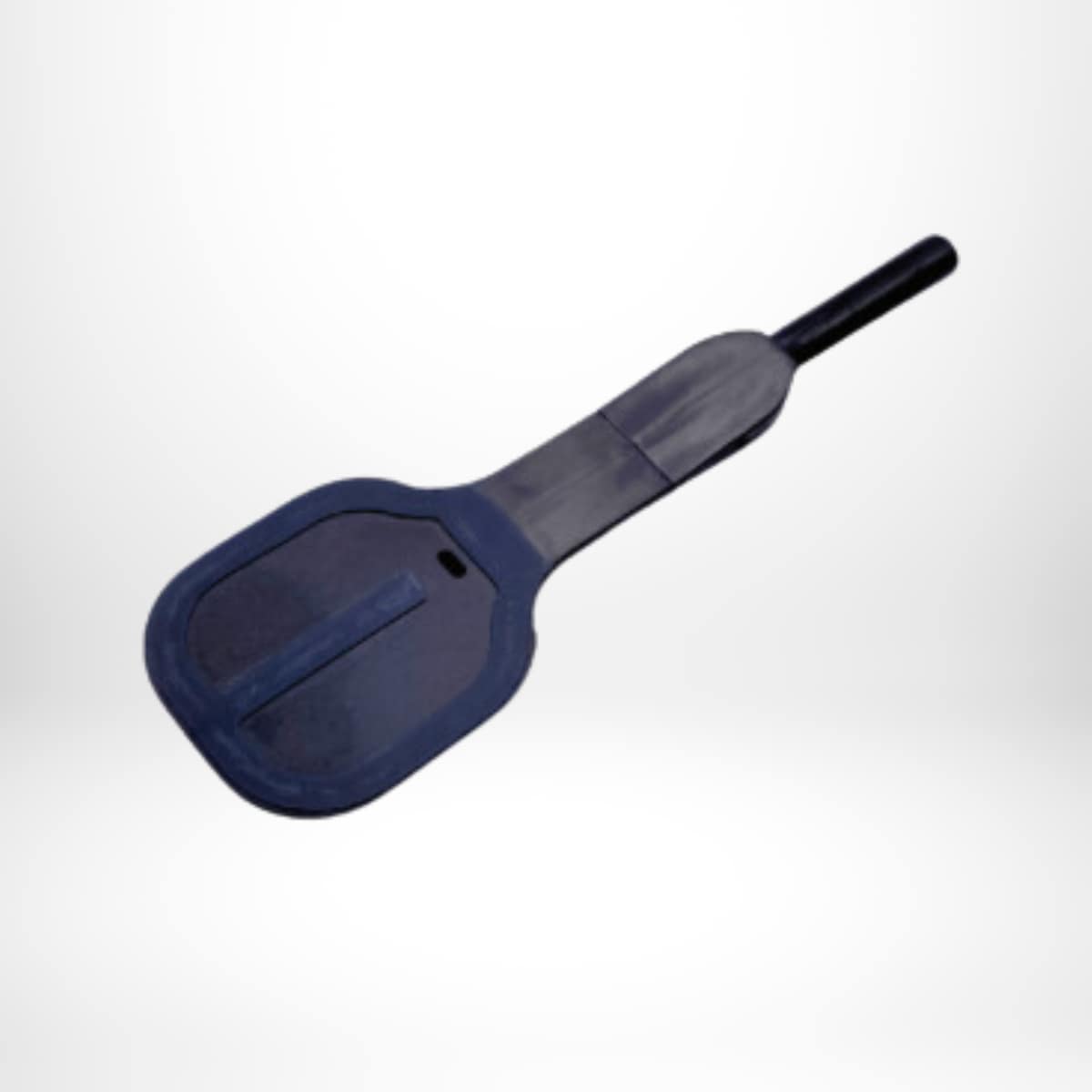

UHMW contact area PEEK tip

SKU: T696PK Category:

Wide, molded press-fit tip with layer of UHMW added to wafer contact area. UHMW is a low particle generating, clean material for handling wafers For use with NOASPF2 vacuum wand. Typically used for 200mm and smaller wafers. Vacuum pocket is approximately 1″ x 0.75″. Not antistatic due to the UHMW material. Used with NOASPF2 or FWCR2 vacuum wands.

Additional Info
Wafer Size50, 76, 100, 150
Dimensions1.4" wide by 4.6" long by 0.26" tall
Weight0.02 lb
Shipping Info

Additional information

Shipping Weight 1 lbs
Dimensions 9 × 7 × 1 in


Send your requirement



UHMW and PEEK Tip designed for 100mm and smaller wafers. Non-marking, clean contact area. Used with the NOASPF2 wand, FWCR2 cordless wand or any “Press-Fit” vacuum compatible products. Vacuum tip has a 0.8in2 area vacuum pocket.  When used with 22″Hg vacuum source, has a 8.9 lbs theoretical holding capacity.
