Small Die and Package Vacuum Wand Set

SKU: VWSET-F Category:

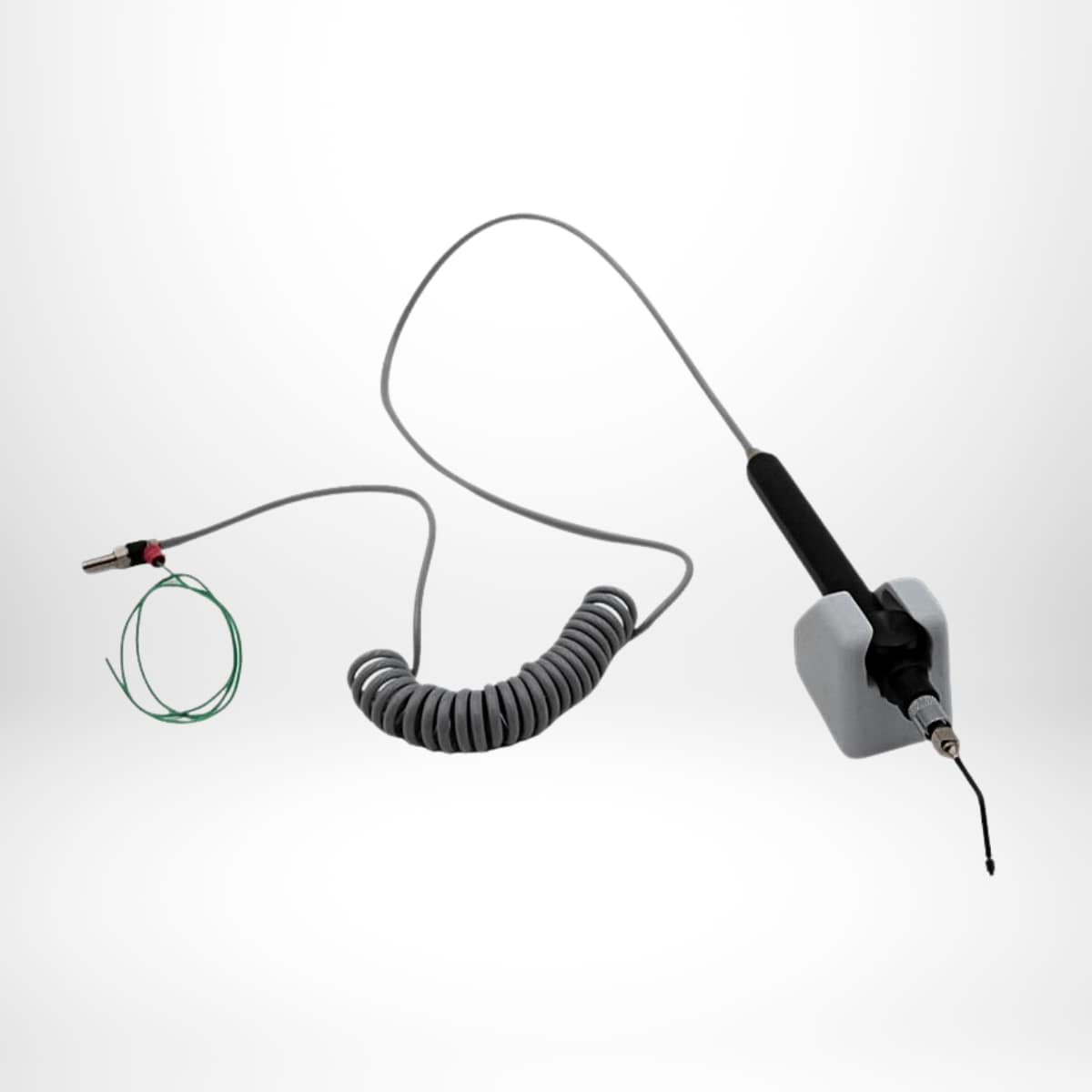

A H-Square standard, the VWSET-F vacuum wand set used for handling small device substrates, die, packages, and optics 4-15mm in size. Set includes everything needed to start handling small devices and chips safely using house vacuum.

Additional Info
Wafer SizeDie
Dimensions9" x 8"
Weight0.5 lb
Shipping Info

Additional information

Shipping Weight 2 lbs
Dimensions 12 × 12 × 6 in

$377.00

Product

Description

A H-Square standard, the VWSET-F vacuum wand set used for handling small device substrates, die, packages, and optics 4-15mm in size. Set includes everything needed to start handling wafers safely using house vacuum. H-Square recommends house vacuum greater than 22″ Hg for best performance. Designed for ISO Class 5 (FS209E Class 10); Antistatic construction, chemical resistant; This is a set; no part substitutions.

Kit includes:

  1. VCAS125 (0.12″ diameter)Vinyl Vacuum Cup (Quantity 1)
  2. DPNOAS2LA Normally Open Vacuum Wand (Quantity 1)
  3. HSU Vacuum Wand Shut-off Holder (Quantity 1)
  4. CTA06 Adapter Assembly for grounding coil cord (Quantity 1)
  5. CC4SDS ESD Coiled Tubing (Quantity 1)
  6. BCHN-16 Hub Needle (Quantity 1)

Requires external vacuum source

H-Square will ship the product to the customer using FedEx. Cost will be calculated using the FedEx website. H-Square does not charge an additional handling fee. If product is in inventory it will be shipped within 3 business days. If it is not in inventory, customer will be notified of the shipping date.

H-Square uses a Return Material Authorization (RMA) process. If you need to return a product, contact us at info@h-square.com to receive an RMA number. Please state name, product part number and reason for return. Once you receive the RMA number, ship the product back to H-Square. Customer is responsible for shipping costs to return product.

  1. If the product is being returned under warranty as defective, it will be repaired or replaced at no charge after evaluation.
  2. If product is being returned unused and unopened within 30 days, a full refund will be offered, less original shipping charges.
  3. If the product is being returned used within 30 days, product will be evaluated for condition and customer refunded accordingly.
  4. Products over 30 days cannot be returned for refund.
H-Square warranties their products for one year from date of sale. This warranty does not cover wear and tear from normal use.
US State Department restricts shipping to certain countries. If shipping outside of USA, the order will be reviewed before shipment.
H-Square will charge applicable sales tax if required by the State of California
