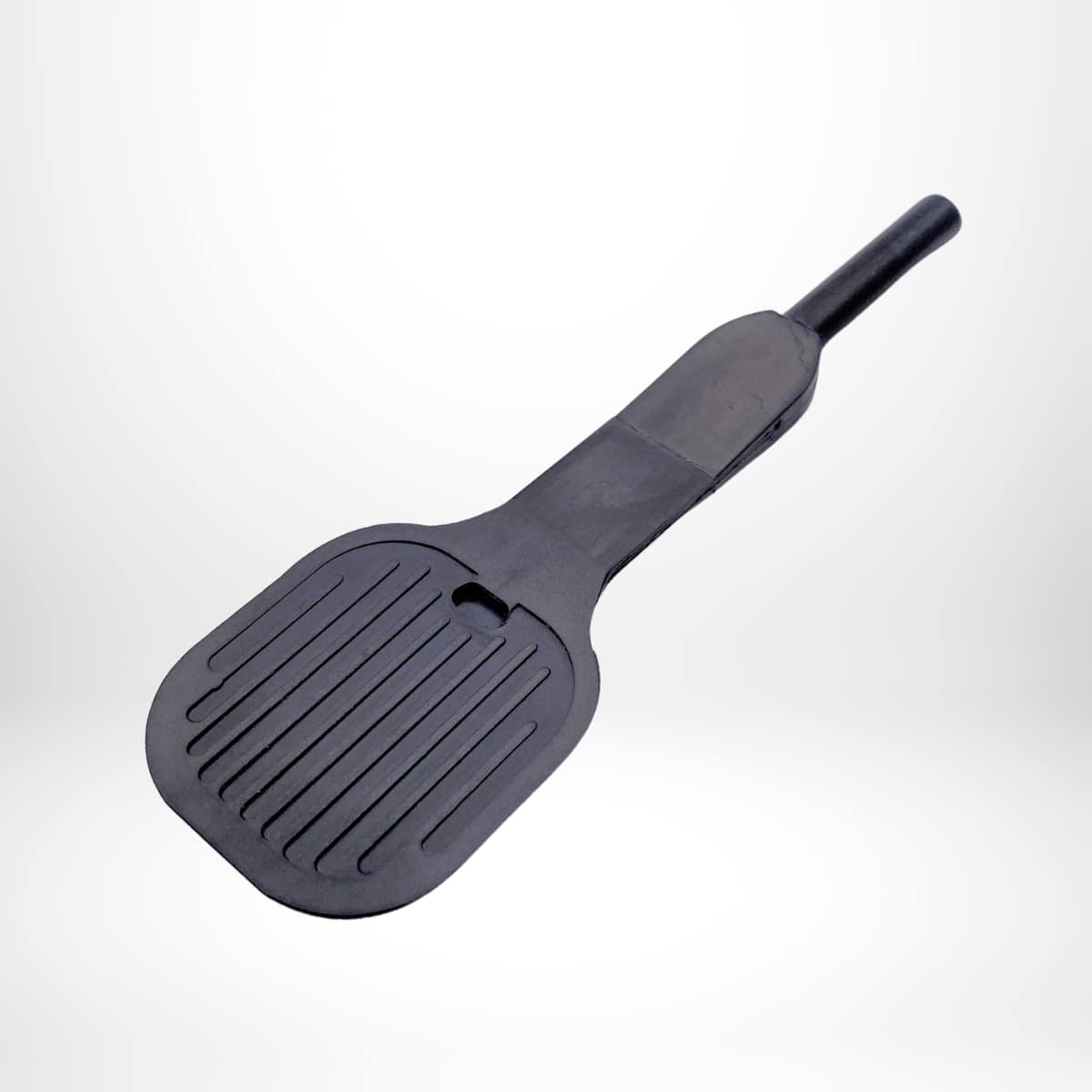

PEEK Vacuum Tip – T693PKAS3
Wide, molded press-fit tip for use with NOASPF2 vacuum wand. Typically used for 200mm and smaller wafers. Vacuum pocket is approximately 1.25″ x 1.25″. Used with NOASPF2 or FWCR2 vacuum wands.
|Wafer Size||76, 100, 150, 200|
|Dimensions||1.4" wide by 4.6" long by 0.26" tall|
|Shipping Weight||1 lbs|
|Dimensions||9 × 7 × 1 in|
Anti-static PEEK Tip designed for 200mm and smaller wafers. Used with the NOASPF2 wand, FWCR2 cordless wand or any “Press-Fit” vacuum compatible products. Vacuum tip has a 0.9in2 area vacuum pocket. When used with 22″Hg vacuum source, has a 9 lbs theoretical holding capacity.
