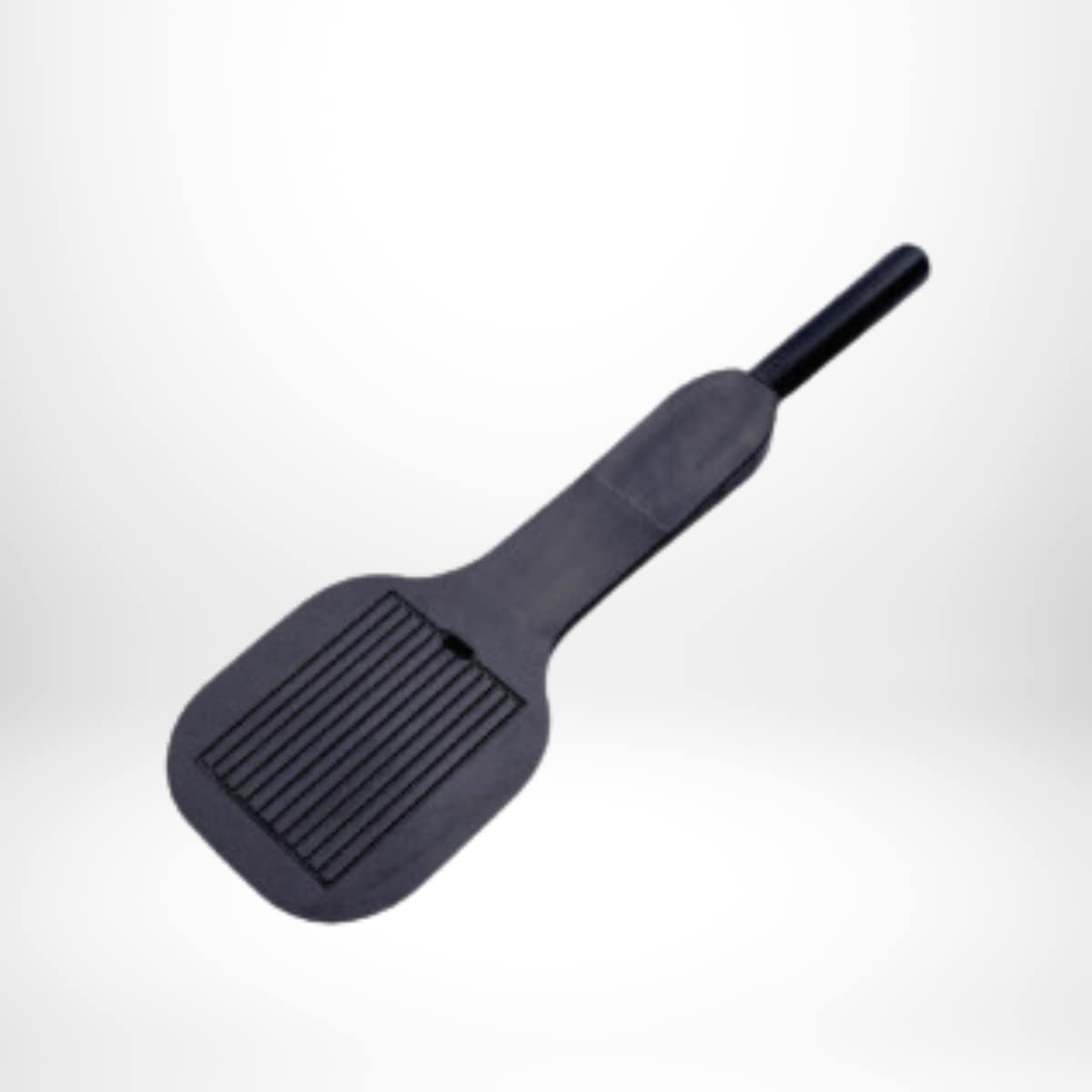

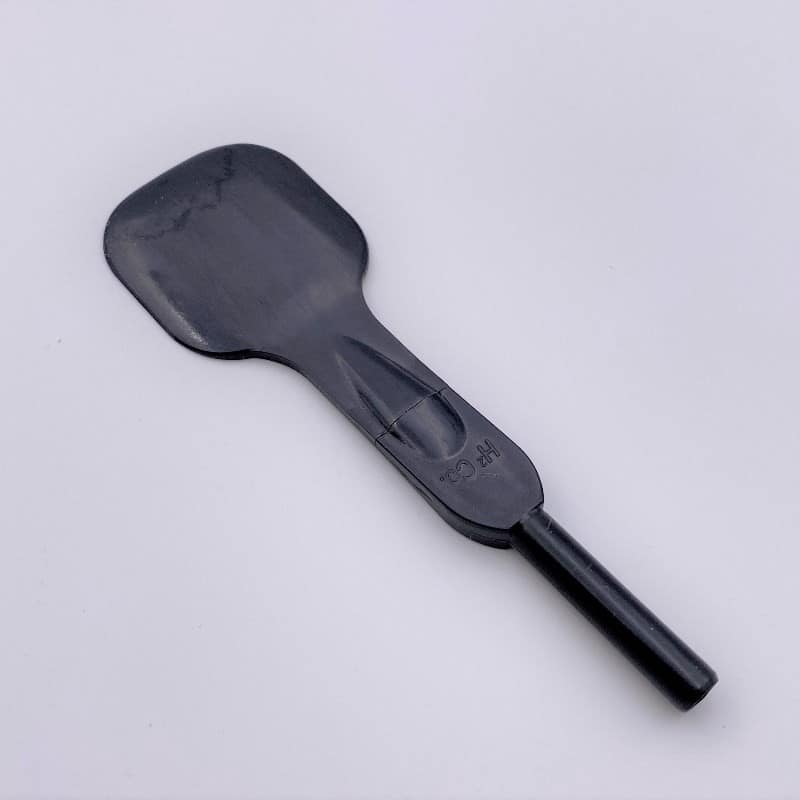

PEEK Vacuum Tip for thin wafers – T793PKAS3

SKU: T793PKAS3 Category:

Wide, molded press-fit tip for use with NOASPF2 vacuum wand. Typically used for thin 200mm and smaller wafers. Vacuum pocket is approximately 1.0″ x 1.0″. Recommended for thin or fragile substrates like GaAs, SiGe, Ge, Inp and other fragile compounds.

Additional Info
Wafer Size76, 100, 150
Dimensions1.2" wide by 4.2" long by 0.26" tall
Weight0.02 lb
Shipping Info

Additional information

Shipping Weight 1 lbs
Dimensions 9 × 7 × 1 in

$125.00

Product

Description

Anti-static PEEK Tip designed for 200mm and smaller thin wafers. Used with the NOASPF2 wand, FWCR2 cordless wand or any “Press-Fit” vacuum compatible products. Vacuum tip has a 0.15in2 area vacuum pocket.  When used with 22″Hg vacuum source, has a 1.6 lbs theoretical holding capacity.
