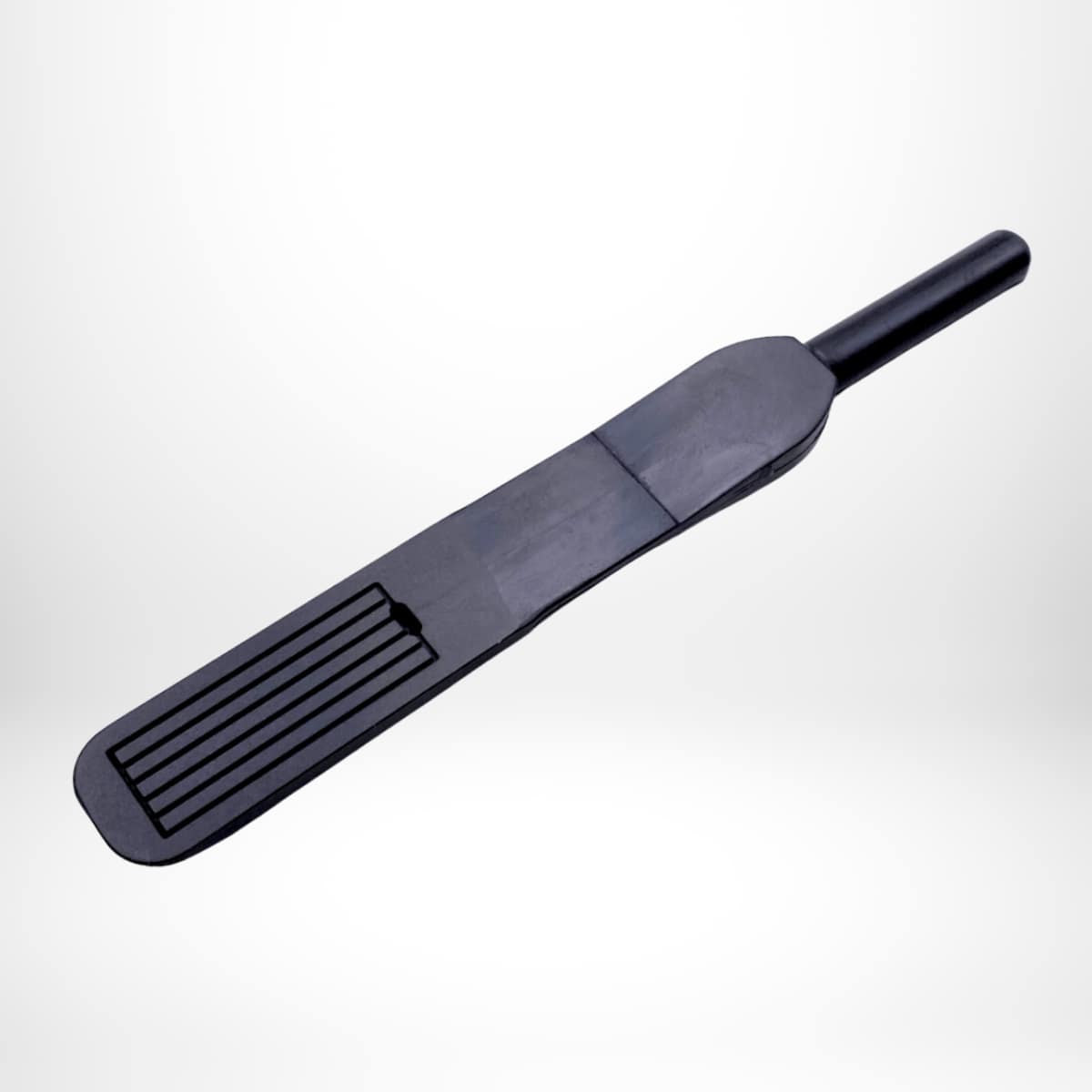

PEEK Vacuum Tip for thin wafers – T792PKAS
Narrow, molded press-fit tip for use with NOASPF2 vacuum wand. Typically used for thin 200mm and smaller wafers. Vacuum pocket is approximately 0.4″ x 0.75″. Recommended for thin or fragile substrates like GaAs, SiGe, Ge, Inp and other fragile compounds.
Additional Info
| Wafer Size | 76, 100, 150 |
|---|---|
| Dimensions | 0.55" wide by 4" long by 0.26" tall |
| Weight | 0.02 lb |
Shipping Info
Additional information
| Shipping Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 7 × 1 in |
$125.00
Product
Description
Anti-static PEEK Tip designed with narrow width for 200mm and smaller thin wafers. Used with the NOASPF2 wand, FWCR2 cordless wand or any “Press-Fit” vacuum compatible products. Vacuum tip has a 0.08in2 area vacuum pocket. When used with 22″Hg vacuum source, has a 0.8 lb theoretical holding capacity.
H-Square uses a Return Material Authorization (RMA) process. If you need to return a product, contact us at info@h-square.com to receive an RMA number. Please state name, product part number and reason for return. Once you receive the RMA number, ship the product back to H-Square. Customer is responsible for shipping costs to return product.
- If the product is being returned under warranty as defective, it will be repaired or replaced at no charge after evaluation.
- If product is being returned unused and unopened within 30 days, a full refund will be offered, less original shipping charges.
- If the product is being returned used within 30 days, product will be evaluated for condition and customer refunded accordingly.
- Products over 30 days cannot be returned for refund.
