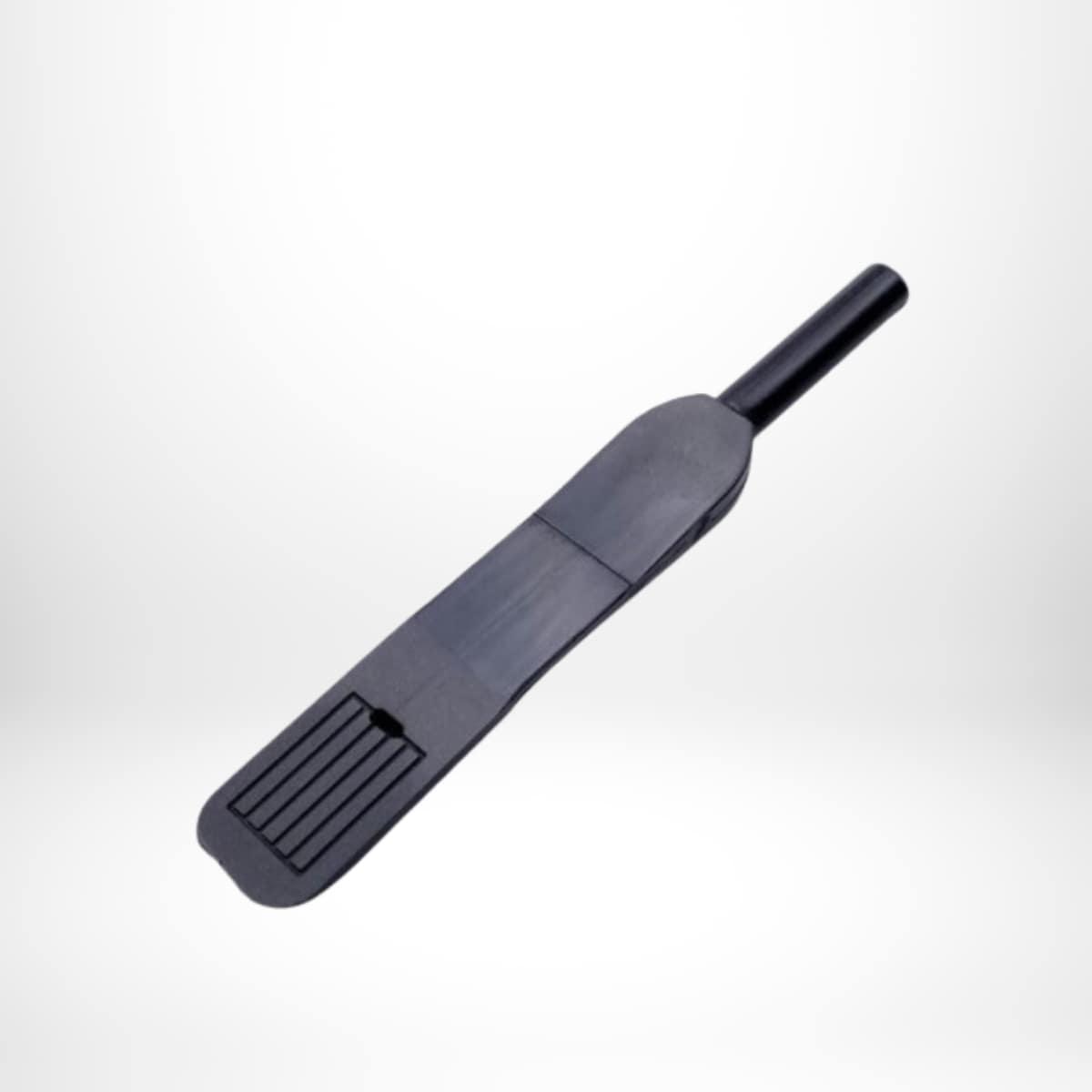

PEEK Vacuum Tip for thin wafers – T791PKAS

SKU: T791PKAS Category:

Narrow, molded press-fit tip for use with NOASPF2 vacuum wand. Typically used for thin 75mm and smaller wafers. Vacuum pocket is approximately 0.4″ x 0.75″. Recommended for thin or fragile substrates like GaAs, SiGe, Ge, Inp and other fragile compounds.

Additional Info
Wafer Size76
Dimensions0.55" wide by 4" long by 0.26" tall
Weight0.02 lb
Shipping Info

Additional information

Shipping Weight 1 lbs
Dimensions 9 × 7 × 1 in

$125.00

Product

Description

Anti-static PEEK Tip designed with narrow width for 100mm and smaller thin wafers. Used with the NOASPF2 wand, FWCR2 cordless wand or any “Press-Fit” vacuum compatible products. Vacuum tip has a 0.05in2 area vacuum pocket.  When used with 22″Hg vacuum source, has a 0.5 lb theoretical holding capacity.

H-Square will ship the product to the customer using FedEx. Cost will be calculated using the FedEx website. H-Square does not charge an additional handling fee. If product is in inventory it will be shipped within 3 business days. If it is not in inventory, customer will be notified of the shipping date.

H-Square uses a Return Material Authorization (RMA) process. If you need to return a product, contact us at info@h-square.com to receive an RMA number. Please state name, product part number and reason for return. Once you receive the RMA number, ship the product back to H-Square. Customer is responsible for shipping costs to return product.

  1. If the product is being returned under warranty as defective, it will be repaired or replaced at no charge after evaluation.
  2. If product is being returned unused and unopened within 30 days, a full refund will be offered, less original shipping charges.
  3. If the product is being returned used within 30 days, product will be evaluated for condition and customer refunded accordingly.
  4. Products over 30 days cannot be returned for refund.
H-Square warranties their products for one year from date of sale. This warranty does not cover wear and tear from normal use.
US State Department restricts shipping to certain countries. If shipping outside of USA, the order will be reviewed before shipment.
H-Square will charge applicable sales tax if required by the State of California
