Mask/Wafer Inspection Station

SKU: BLIS Category:

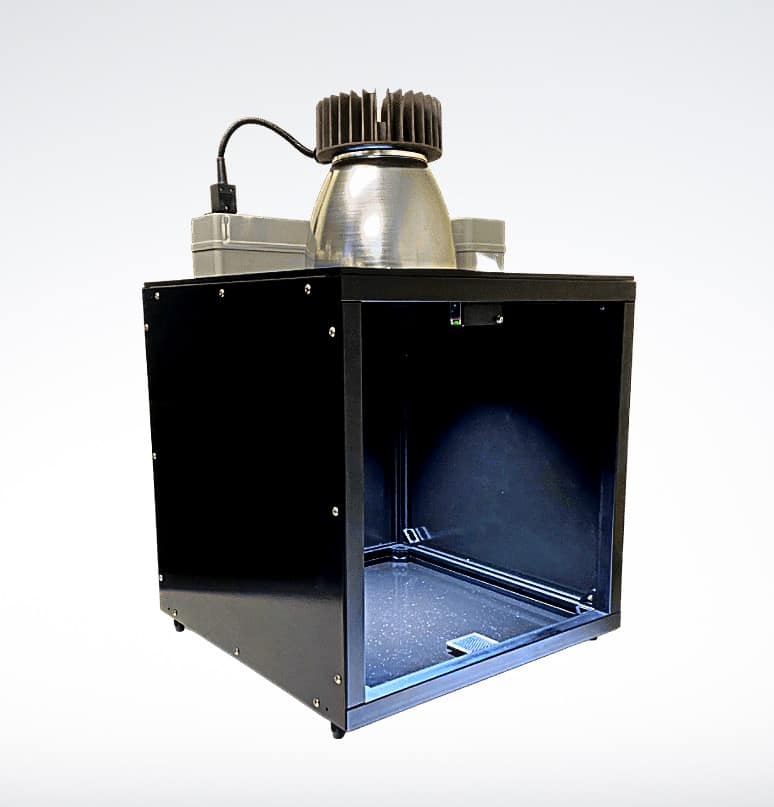

Bright-light reflection containment chamber with a LED light source. The system includes an integrated automatic on / off motion sensor switch. Substrates are manually placed into the black light absorbing chamber and viewed under the concentrated light source. The enclosed table-top design provides the operator with a controlled macro light inspection while capturing and diffusing most deflected light.

Additional Info
Wafer Size76, 100, 150, 200, 300
Power Requirements120VAC / 1 amp
Weight25 lbs
Shipping Info

Additional information

Dimensions 18 × 18 × 18 in
Send your requirement

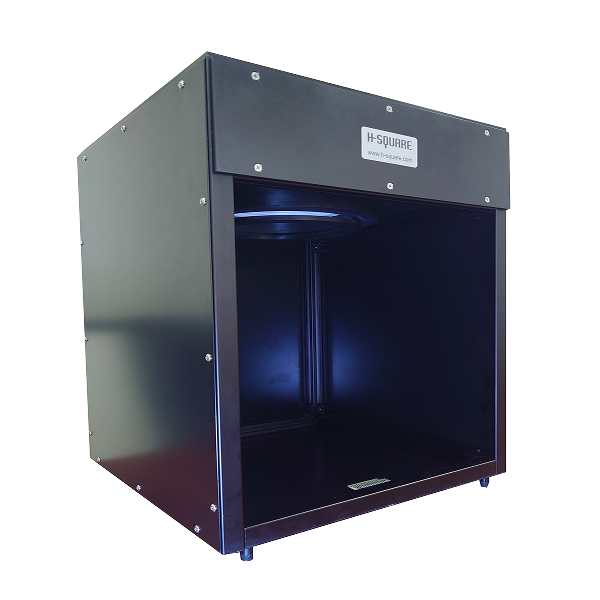

Mask Inspection Station. The mask inspection station is a bright light station for macro examination of reticles, masks or wafers. Used with H-Square mask picks this allows operators to see the entire surface of the mask under bright light conditions. Dimensions are 18" x 18" x 18". Unit is supplied with optional yellow filter.


  1. Color temperature: 4000
  2. Lumens: 3995
  3. Equivalent Wattage: 42
  4. Input Current: 0.33 amps
  5. Input voltage: 120 VAC 50/60 Hz
  6. Dimmable: Yes
  7. Energy Star: Yes
  8. Average Life: 50000
H-Square will ship the product to the customer using FedEx. Cost will be calculated using the FedEx website. H-Square does not charge an additional handling fee. If product is in inventory it will be shipped within 3 business days. If it is not in inventory, customer will be notified of the shipping date.

H-Square uses a Return Material Authorization (RMA) process. If you need to return a product, contact us at to receive an RMA number. Please state name, product part number and reason for return. Once you receive the RMA number, ship the product back to H-Square. Customer is responsible for shipping costs to return product.

  1. If the product is being returned under warranty as defective, it will be repaired or replaced at no charge after evaluation.
  2. If product is being returned unused and unopened within 30 days, a full refund will be offered, less original shipping charges.
  3. If the product is being returned used within 30 days, product will be evaluated for condition and customer refunded accordingly.
  4. Products over 30 days cannot be returned for refund.
H-Square warranties their products for one year from date of sale. This warranty does not cover wear and tear from normal use.
US State Department restricts shipping to certain countries. If shipping outside of USA, the order will be reviewed before shipment.
H-Square will charge applicable sales tax if required by the State of California
