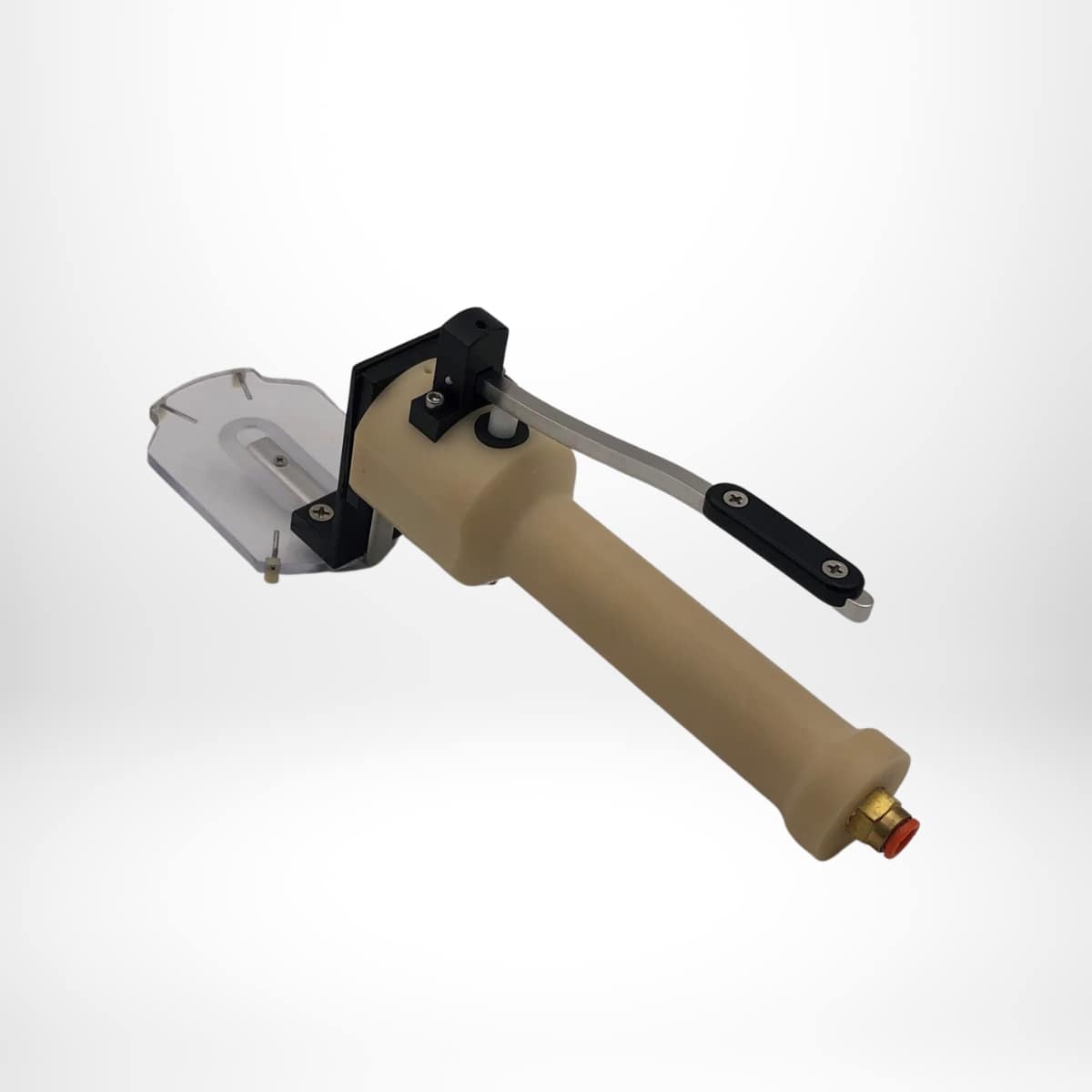

Horizontal Handle Breeze 3″
Non-contact handling of 3″ wafers using the Bernoulli effect to lift and hold the wafer. Corral pins are located on the side to keep the wafer centered on the wand. Requires CDA or Nitrogen source. Depending on substrate size and weight 10-20 PSI and 1-2 SCFM is required.
|Dimensions||11" x 6" x 3" tall|
|Shipping Weight||2 lbs|
|Dimensions||12 × 12 × 6 in|
The Breeze wand is non-contact 76mm wafer handling wand that employees the Bernoulli principle to lift and hold the substrate securely without touching it. Four “corral” pins keep the substrate centered on the wand. Ideally suited for wafers with etched cavities or Taiko wafers. The horizontal Breeze is ideal for removing substrates from a platen or cassette from the top down unloading.
H-Square uses a Return Material Authorization (RMA) process. If you need to return a product, contact us at firstname.lastname@example.org to receive an RMA number. Please state name, product part number and reason for return. Once you receive the RMA number, ship the product back to H-Square. Customer is responsible for shipping costs to return product.
- If the product is being returned under warranty as defective, it will be repaired or replaced at no charge after evaluation.
- If product is being returned unused and unopened within 30 days, a full refund will be offered, less original shipping charges.
- If the product is being returned used within 30 days, product will be evaluated for condition and customer refunded accordingly.
- Products over 30 days cannot be returned for refund.
