Horizontal Handle Breeze 12″

SKU: H2BST-12 Category:

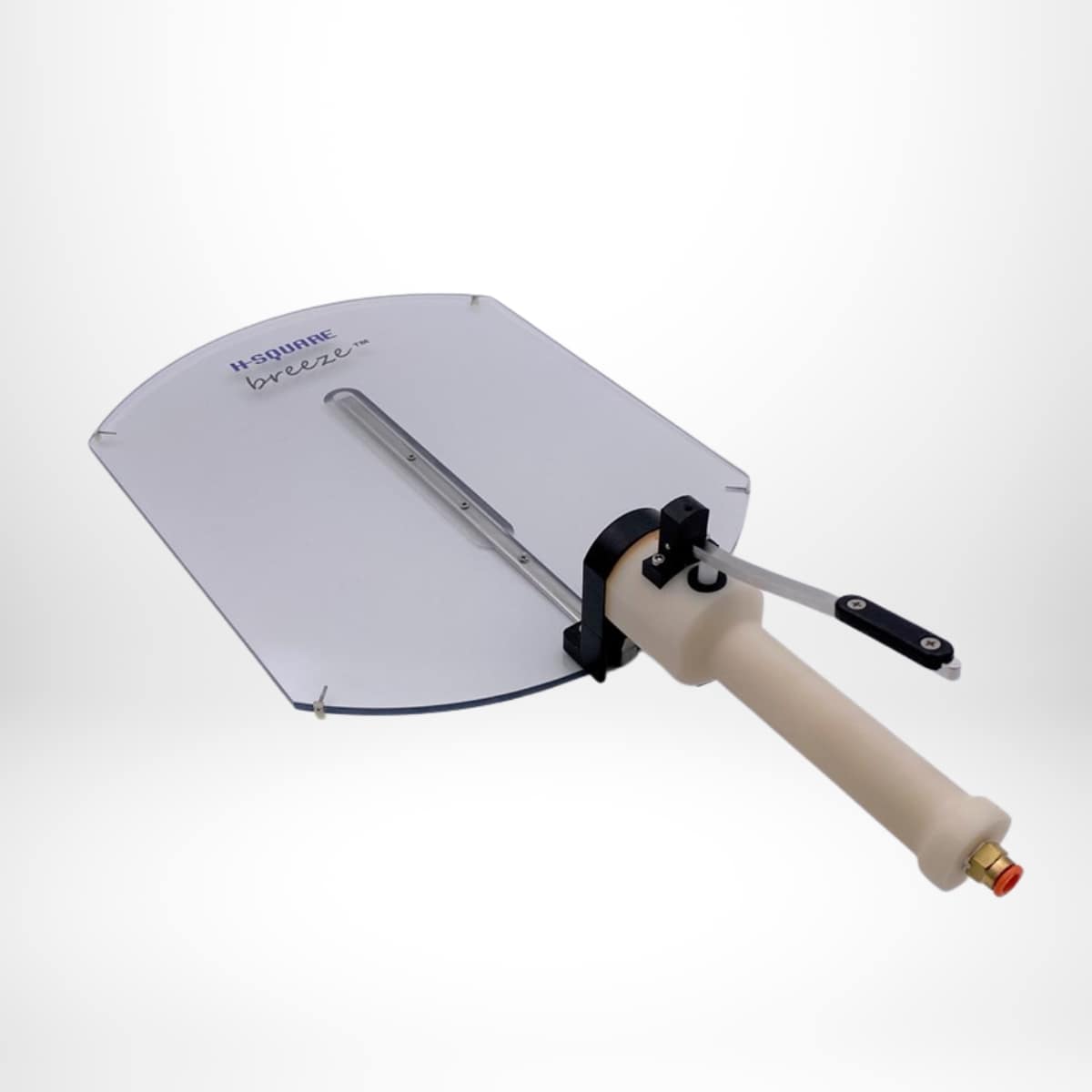

Non-contact handling of 300mm wafers using the Bernoulli effect to lift and hold the wafer. Corral pins are located on the side to keep the wafer centered on the wand. Requires CDA or Nitrogen source. Depending on substrate size and weight 10-20 PSI and 1-2 SCFM is required.

Additional Info
Wafer Size300
Dimensions19" x 10" x 5"
Weight3 lbs
Shipping Info

Additional information

Shipping Weight 6 lbs
Dimensions 20 × 11 × 10 in

$2,796.00

Available on backorder

Product

Description

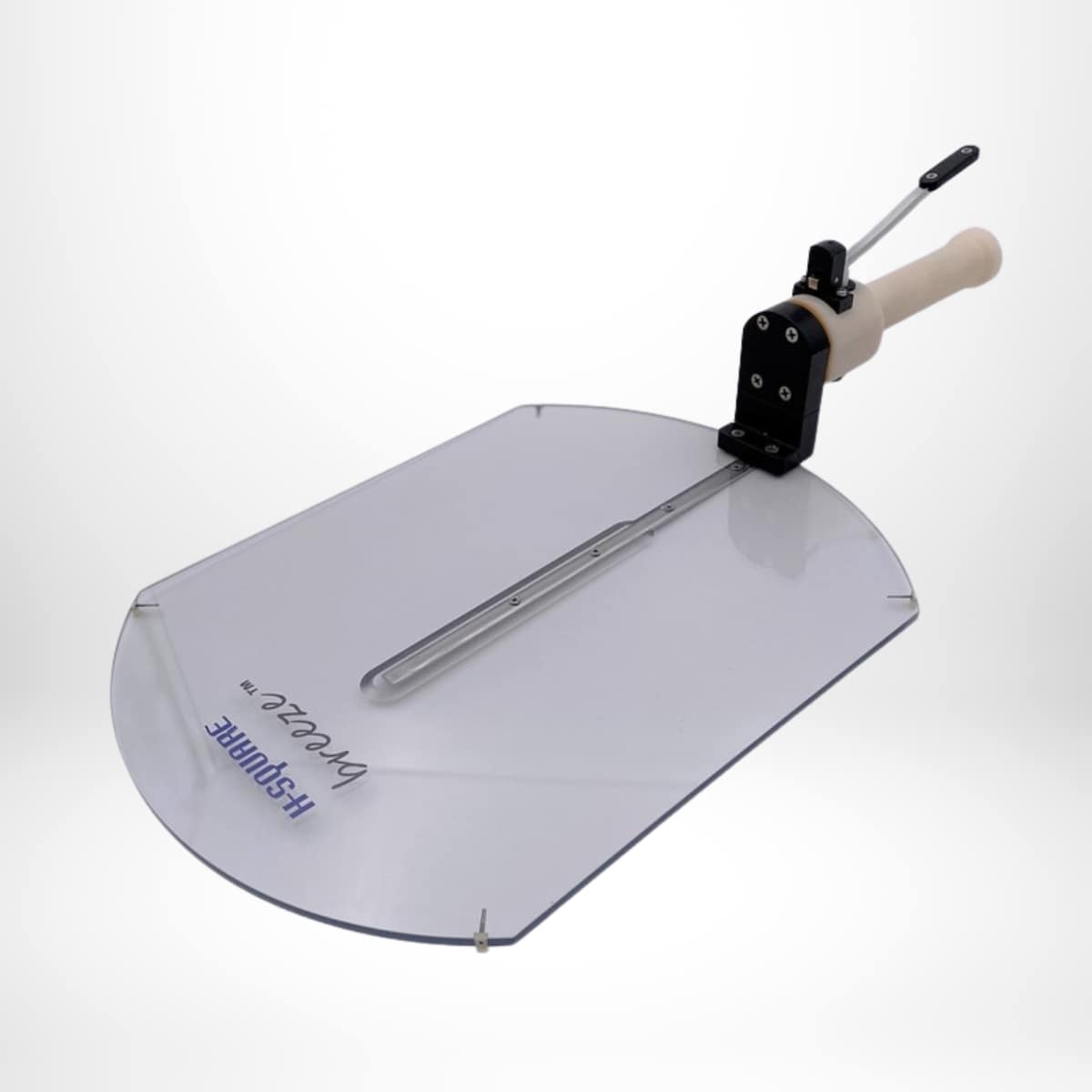

The Breeze wand is non-contact 300mm wafer handling wand that employees the Bernoulli principle to lift and hold the substrate securely without touching it. Four “corral” pins keep the substrate centered on the wand. Ideally suited for wafers with etched cavities or Taiko wafers. The horizontal Breeze is ideal for removing substrates from a platen or cassette from the top down unloading.

H-Square will ship the product to the customer using FedEx. Cost will be calculated using the FedEx website. H-Square does not charge an additional handling fee. If product is in inventory it will be shipped within 3 business days. If it is not in inventory, customer will be notified of the shipping date.

H-Square uses a Return Material Authorization (RMA) process. If you need to return a product, contact us at info@h-square.com to receive an RMA number. Please state name, product part number and reason for return. Once you receive the RMA number, ship the product back to H-Square. Customer is responsible for shipping costs to return product.

  1. If the product is being returned under warranty as defective, it will be repaired or replaced at no charge after evaluation.
  2. If product is being returned unused and unopened within 30 days, a full refund will be offered, less original shipping charges.
  3. If the product is being returned used within 30 days, product will be evaluated for condition and customer refunded accordingly.
  4. Products over 30 days cannot be returned for refund.
H-Square warranties their products for one year from date of sale. This warranty does not cover wear and tear from normal use.
US State Department restricts shipping to certain countries. If shipping outside of USA, the order will be reviewed before shipment.
H-Square will charge applicable sales tax if required by the State of California
