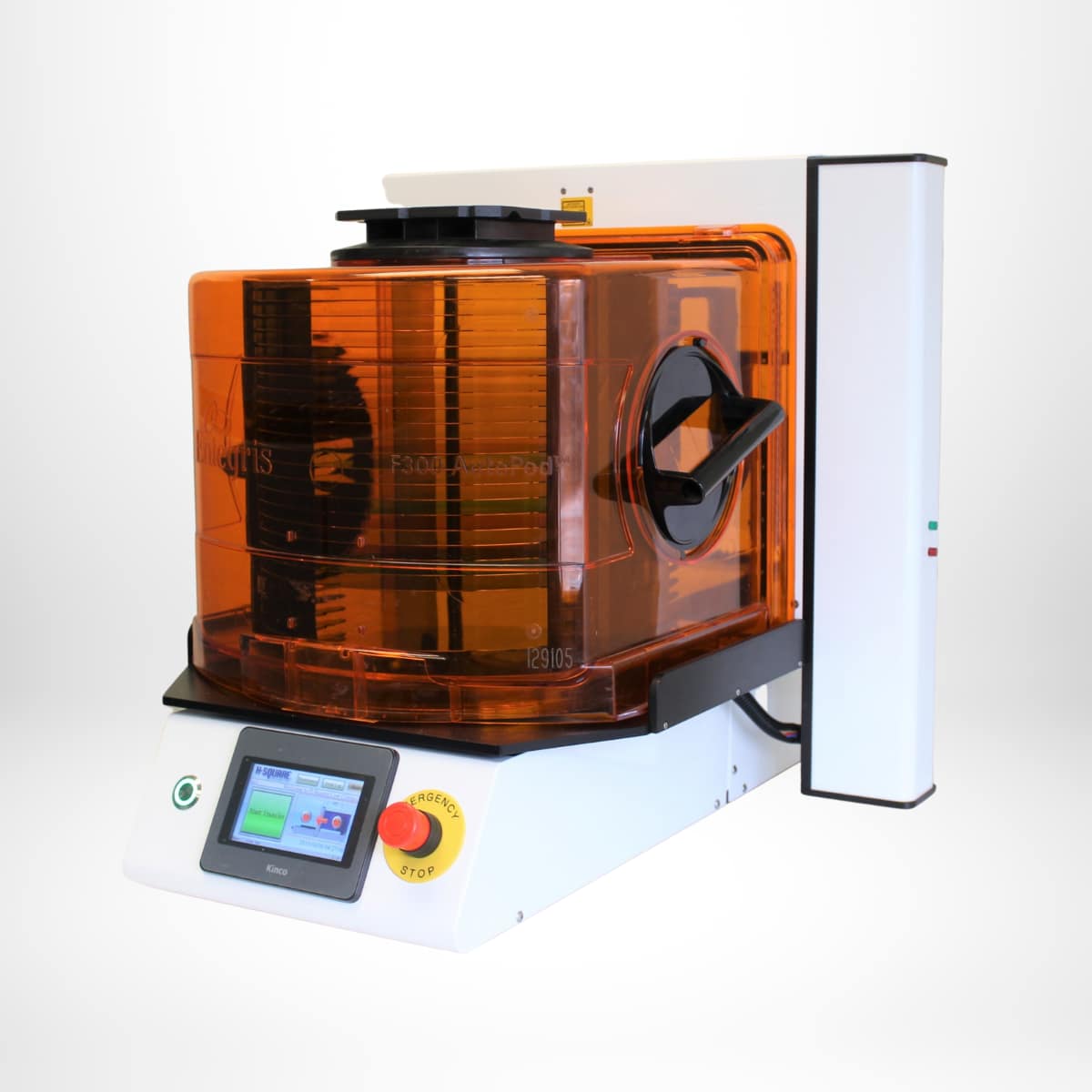

Bulk Horizontal Wafer Transfer 300mm

SKU: LCT1AS12 Category:

Tabletop, automatic FOUP to FOSB wafer transfer tool. Wafers are mapped, then gently bulk-lifted in the cassette; minimizing contact with the cassette and eliminating the chances of particulation, abrasion, or wafer edge chipping. High reliability and low maintenance . Small footprint saves valuable cleanroom space. Antistatic construction; Specify cassette model number(s) with order.

Watch Product Video
Additional Info
Wafer Size300
Power Requirements24VDC 3 Amps 120VAC to 24VDC Power Supply Sold seperately
Throughput60 cassettes per hour
Weight75 lbs
Shipping Info

Additional information

Shipping Weight 165 lbs
Dimensions 19 × 35 × 20 in

$30,108.00

Send your requirement

Product

Description

Tabletop, automatic FOUP to FOSB wafer transfer tool. Wafers are mapped, then gently bulk-lifted in the cassette; minimizing contact with the cassette and eliminating the chances of particulation, abrasion, or wafer edge chipping. High reliability and low maintenance . Small footprint saves valuable cleanroom space. Antistatic construction; Specify cassette model number(s) with order.

  • Touchscreen control
  • FOUP to FOSB
  • Mapping feature checks for cross slot, double stack and wafer presence.
  • PVDF coated rods transfer 25 wafers at a time
  • Designed for ISO Class 3
H-Square will ship the product to the customer using FedEx. Cost will be calculated using the FedEx website. H-Square does not charge an additional handling fee. If product is in inventory it will be shipped within 3 business days. If it is not in inventory, customer will be notified of the shipping date.

H-Square uses a Return Material Authorization (RMA) process. If you need to return a product, contact us at info@h-square.com to receive an RMA number. Please state name, product part number and reason for return. Once you receive the RMA number, ship the product back to H-Square. Customer is responsible for shipping costs to return product.

  1. If the product is being returned under warranty as defective, it will be repaired or replaced at no charge after evaluation.
  2. If product is being returned unused and unopened within 30 days, a full refund will be offered, less original shipping charges.
  3. If the product is being returned used within 30 days, product will be evaluated for condition and customer refunded accordingly.
  4. Products over 30 days cannot be returned for refund.
H-Square warranties their products for one year from date of sale. This warranty does not cover wear and tear from normal use.
US State Department restricts shipping to certain countries. If shipping outside of USA, the order will be reviewed before shipment.
H-Square will charge applicable sales tax if required by the State of California
